Sistem operasi

Android 8.1

CPU

CPU Qualcomm Snapdragon 625 SDM450, 1.8GHz CPU

GPU

Qualcomm® Adreno™ 509 GPU

RAM

RAM: 4GB

FLASH: 64GB

Penyimpanan yang Diperpanjang

Micro SD, Maximum 128G

Port USB

MicroUSB 5 pin; Dukungan untuk menghubungkan U - garis disk / Mouse / Keyboard / OTG

& nbsp;

OTG

Melalui OTG dapat memenuhi port jaringan 100M, pengaturan kartu jaringan, panggilan PPPoE - ke atas,

web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 Serial port

Port eksternal

Port headphone

Perlindungan & nbsp;Kelas

Tingkat Perlindungan Industri

IP65

Drop Grade

Drop resistance from 1.2m

Nirkabel & nbsp;Komunikasi

Bluetooth

BT4. 0 (BLE) jarak transmisi class1：10m

GPS

Default GPS: GPS,10m

WIFI

Support IEEE 802.11a/b/g/n/ac (2.4G and 5G bands)

& nbsp;

& nbsp;

& nbsp;

2G/3G/4G LTE

CDMA 1X / EVDO BC 0 GSM 850/900/1800/190 0 WCDMA B1 / B2 / B5 / B8 TD - SCDMA B34 / B39 FDD - LTE B1 / B3 / B5 / B7

TD - LTE B38 / B39 / B40 / B41

Fisik & nbsp;Parameter

Tampilan Layar

5.5 inch LCD screen, 1920*1080 IPS capacitive touch screen, 430NITS

& nbsp;

Papan ketik

Button: One scan button on the side (the bar code and UHF can be used together), one power button, volume plus or minus button. The 3 physical function

keys (Back Menu HOME)

Kamera

5 million pixels front camera, 13 million pixels rear camera with automatic focus

dan fungsi pencahayaan

Headset

3.5mm audio Interface, has MIC and loudspeaker

Lampu indikator LED

Lampu pernapasan, indikator pengisian daya

Fungsi Senter

Dukungan, dapat digunakan untuk penerangan darurat

Toko Googleplay

Dukung

Sensor gravitasi

Dukung

Kompas

Dukung

Giroskop

Dukung

Sensor cahaya dan jarak

Dukung

FM

Dukung

Sidik jari

Untuk membuka kunci

Baterai Lithium yang dapat diisi ulang

3.8V 5 0 0 0 mAh, Mendukung pengisian cepat (QC3. 0)

Bersiap

About 500 hours

Waktu kerja

About 8 hours

Dimensi

232*158*22

Bobot

170*84*15mm(host)

Lingkungan & nbsp;Karakteristik

Suhu kerja

-10℃ ~ +50℃

Suhu penyimpanan

-40℃ ~ +60℃

Kelembaban

5% -95% kelembaban relatif; tidak ada kondensasi

Fungsi opsional

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

Pemindaian barcode

1D Laser Scanner Index(Internal):

Honeywell N4313

Kecepatan pemindaian: 104 kali / detik +12 kali / detik (pemindaian dua arah) Jarak pemindaian: 2.5cm -114. 3cm

Scanning angle: 47±3°(default) /35±3°(reduced code)

2D Barcode Scanner Index(Internal):

Optional modules: Newlands EM3296, or Honeywell N3680, or Honeywell N6603

Identification ability: 1D, 2D, OCR

Scanning angle: rotate 360°, incline±50°, deflection ±50° Field of View: Horizontal 36°, vertical 23°

Kedalaman bidang: 4cm -23. 5cm

Pencahayaan lingkungan: 0 ~ 100, 000 LUX

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

RFID

HF RFID (Internal):

Support 13.56MHZ ,ISO14443A，B, ISO15693 Protocol，Mendukung kartu Mifare， jarak baca 0-3 cm

& nbsp;

& nbsp;

LF RFID:

Dalam Jaket

134.2KHZ LF RFID, support ISO11784/5 protocol, support to read EM, TEMID, TK cards and compatible cards IC card(FDX/HDX)

Dalam Jaket

125KHZ LF RFID, support to read ID card

& nbsp;

RFID UHF

Dalam Jaket

Frekuensi kerja: 902-928 MHz atau 865-868 MHz (M2600, chip Impinj R2000)

Reading distance: no more than 6m

Pistol grip

With internal batteries and scan button (4800mAh battery inside)

Bagian Standar / Dasar

S917V2 Host

CDMA 1X / EVDO BC 0 GSM 850/900/1800/190 0 WCDMA B1 / B2 / B5 / B8 TD - SCDMA B34 / B39 FDD - LTE B1 / B3 / B5 / B7

TD - LTE B38 / B39 / B40 / B41

& nbsp;

& nbsp;

& nbsp;

S917V2Q-G

& nbsp;

Android 8.1 OS, Qualcomm Snapdragon 625 SDM450, 1.8GHz CPU,4G RAM, 64G ROM

Bluetooth /3G 4G LTE / WIFI / GPS

5,5 inci IPS LCD 1920 * 1080 5+13 Juta Pixel Kamera 5000mAh Baterai Lithium

Modul opsional

& nbsp;

Pemindaian barcode

& nbsp;

(Jika perlu, pilih satu saja dari N, 2,8, 0)

1D Barcode

& nbsp;

pemindai

& nbsp;

N

& nbsp;

1D Laser Barcode Scanning Honeywell N4313

& nbsp;

2D Barcode scanner

2

2D Barcode Scanning Newsland EM3296

8

2D Barcode Scanning Honeywell N3680

0

2D Barcode Scanning Honeywell N6603

& nbsp;

& nbsp;

& nbsp;

& nbsp;

RFID

& nbsp;

& nbsp;

LF RFID

4

LF 134KHZ (FDX)

5

LF 125KHZ

L

LF 134KHz (FDX/HDX)

HF (NFC) RFID

H

HF RFID 13.56Mhz

& nbsp;

RFID UHF

M

902-928 MHZ M2600 dengan chip R2000

E

865-868 MHZ M2600 dengan chip R2000

& nbsp;

& nbsp;

& nbsp;

Paket standar

& nbsp;

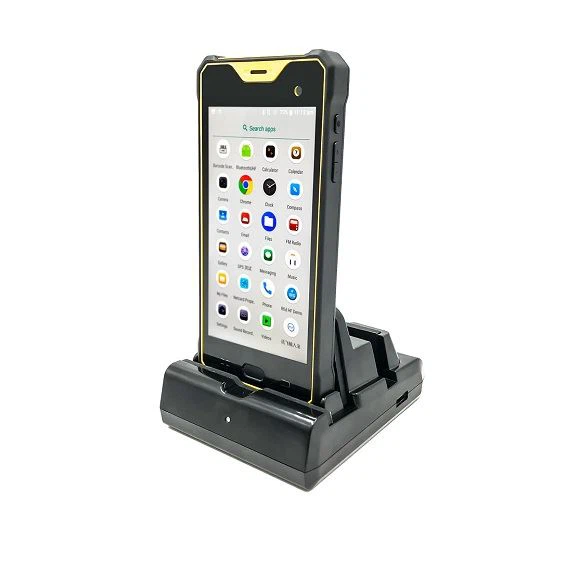

S917V2 Android PDA

& nbsp;

& nbsp;

Pengisi daya

& nbsp;

& nbsp;

Kabel USB

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

& nbsp;

Paket opsional

Earphone (opsional)

& nbsp;

& nbsp;

& nbsp;

Perangkat OTG USB - LAN RJ45 (Opsional)

& nbsp;

& nbsp;

& nbsp;

Sabuk bahu

& nbsp;

& nbsp;

& nbsp;

Tas (opsional)

& nbsp;
